WEBDL 数据采集器

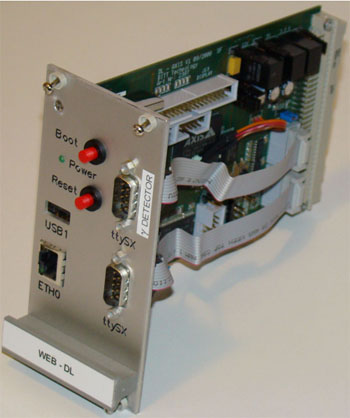

WEBDL Naked„BITT-WEBDL“ is a universal data logger consisting of hard- and software. The data logger is based on a CPU (ETRAX 100LX MCM 4+16) from AXIS. The system is running an embedded Linux as operating system. It acquires data from directly connected measuring instruments like a gamma detector and stores these data. “ BITT-WEBDL” is able to visualize data directly through a web server in a similar way as it's big brother “BITT SCADA 2008”.



Hardware features:
  • ETRAX 100 LX MCM 4+16 CPU
  • 16MB or 32MB RAM
  • 8MB Flash
  • 1 Ethernet port 10/100Mbit
  • 1 USB connector external OR native RS232
  • 1 USB connector internal
  • 2 native serial ports (RS232)
  • 1 RS485/422 OR native RS232 port
  • MAXIM 1-wire interface connected to one RS232 port (alternatively over an external USB to 1-wire adapter)
  • real time clock (RTC), powered by an ultra capacitor (1Farad), so changing of the battery isn’t necessary!
  • 4-row LCD Display (Optional)
  • 4-button keypad (Optional)
 Software features:
  • Running Linux (2.4.x)
  • The acquired data are stored in a simple SQL database and/or files
  • Every data is visualized through a web server, so every WEB Browser can act as a client(Internet Explorer, Firefox, Opera)
  • For specific purpose the “BITT-WEBDL" can also provide the collected data through a FTP server
  • Support of SSL (https and SSH)
  • Login over Telnet and SSH is supported

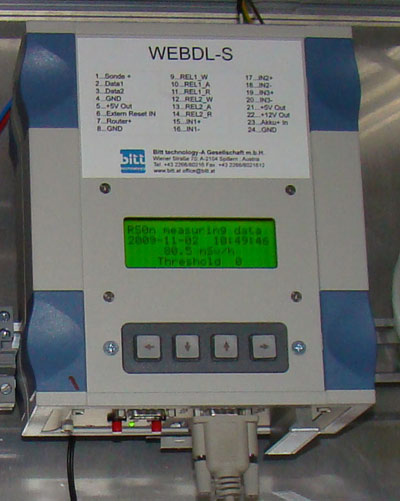

 WEBDL for Solar Stations
WEBDL inside plastic housing and with 4-row display usually used inside RS03 Solar Measuring Stations

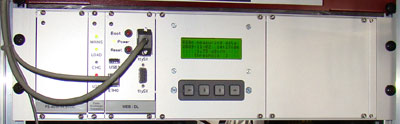

WEBDL Rack for Wallmount Stations or Laboratory
WEBDL inside 19" Rack usually used inside wallmount Measuring Stations


WEBDL inside plastic housing and with 4-row display, desktop version

WEBDL accessories, PS-40W Power Supply for rack and desktop version, battery charging module with deep discharge protection
